2.4-2.5GHz Coaxial Circulator 50dB isolation

2013-09-12



Frequency

2.4-2.5GHz

Part Number

SS-HCC5628A

Isolation

≥50dB @2-1
≥25dB @3-2

Insertion Loss

≤0.65dB @1-2
≤0.35dB @2-3

VSWR

≤1.2:1

Temperature

-20~+65℃

Forward Power

10 W

Reverse Power

 10 W

Connector Type

 SMA Female

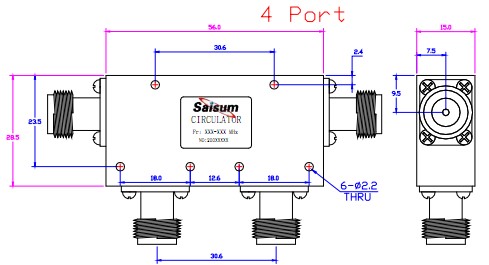

Outline Drawing (Unit: mm)
