News

1-2GHz Coaxial Isolator

2013-08-29

 Product SS-CI6466A cover frequency range 1-2GHz, power handling capability chive 100W. and min 17dB isolation, max 0.69dB insertion loss.


Frequency

1-2GHz

Part Number

SS-CI6466A

Isolation

≥17dB

Insertion Loss

≤0.6dB

VSWR

≤1.4:1

Temperature

+10~+70℃

Forward Power

60 W

Reverse Power

60 W

Connector Type

SMA Female

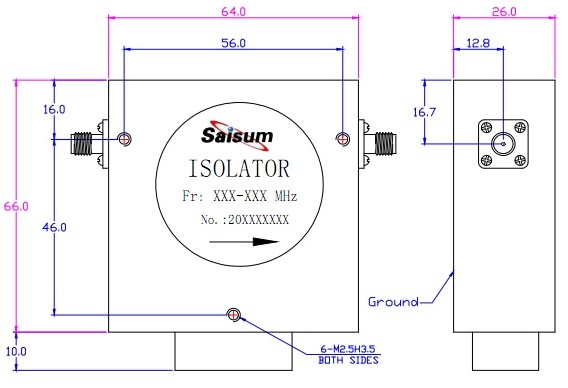

Outline Drawing (Unit: mm)
